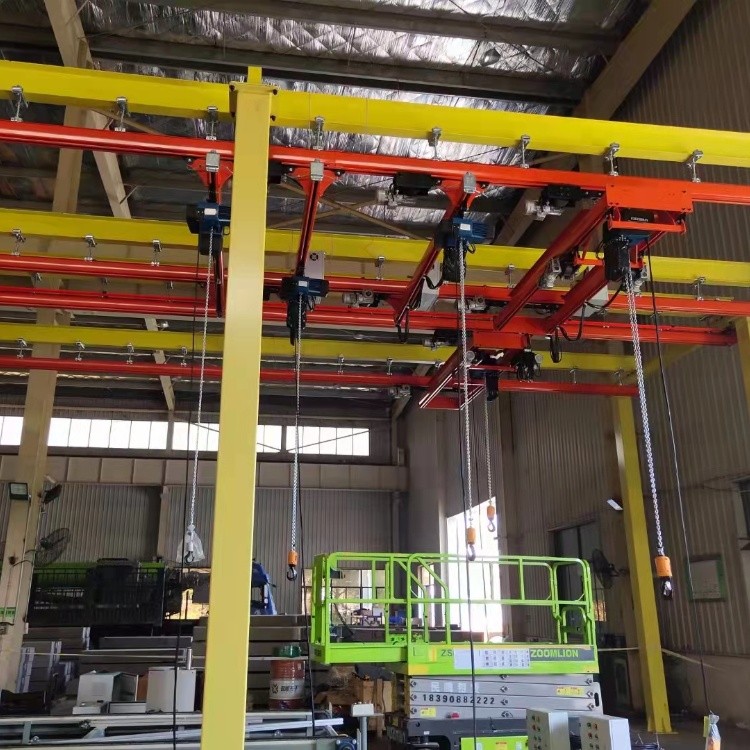

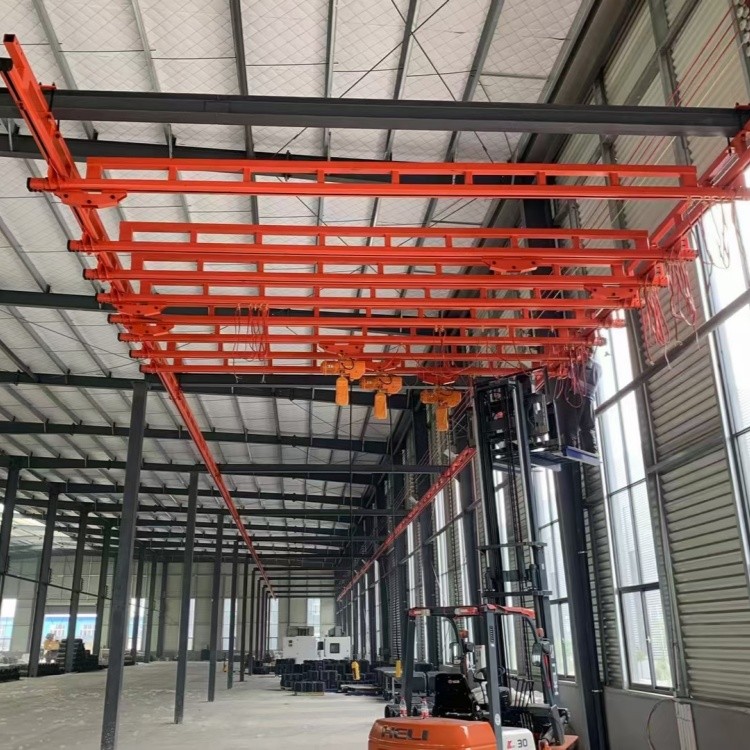

Workstation Overhead Crane
Product Overview and Highlights：

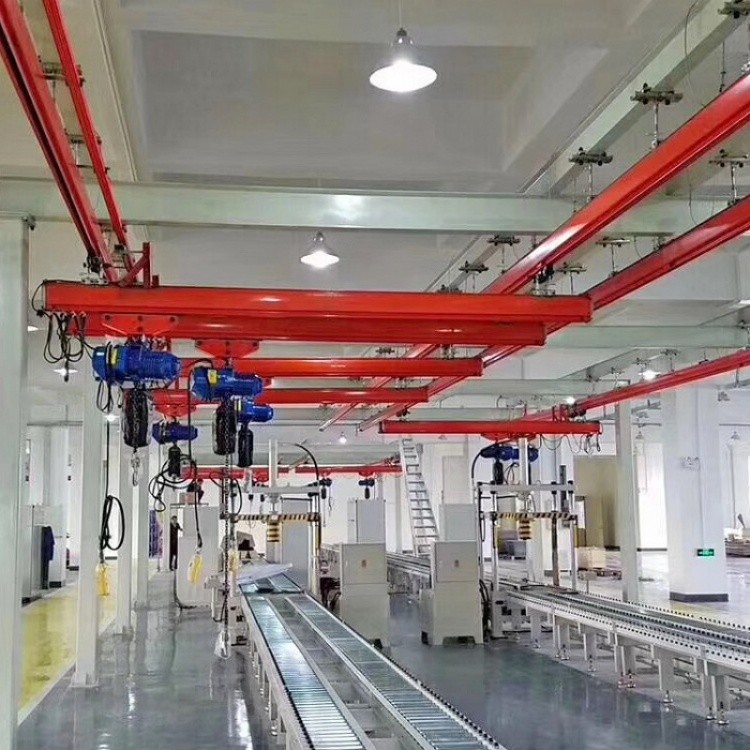

The Workstation overhead crane is a lightweight and modular material handling solution designed for precise and efficient lifting within defined work areas. It mainly consists of a track system, electric hoist, control system, and support structure. Compared with traditional overhead cranes, the Workstation overhead crane focuses on light loads, smooth movement, and high adaptability. As a typical Workstation bridge crane, it supports both standalone workstations and integrated conveying systems.
1.Modular and lightweight design.
2.High flexibility for customized layouts.
3.Easy installation with low structural requirements.
4.Smooth and precise lifting control.
5.Cost-effective solution for light-duty handling.
Product Parameters：
|
Load capacity (t) |
0.5-3.2 (customizable) |
|
Span (m) |
2.5-18 |
|
Lifting height (m) |
3-16 |
|
Working Duty |
M4-M7 |
|
Control method |
Floor control / Remote control / Cabin control |
|
Working temperature |
-20℃～60℃ |
|
Power supply |
220V–690V, 50/60Hz, 3-phase AC or customize |
Product Features and Applications：
1.Compact structure: Standardized components reduce space usage and simplify installation and commissioning.
2.High cost performance: The workstation overhead crane can be suspended directly from roof structures or steel beams without additional runway columns.
3.Simple and intuitive operation: Pendant, remote, or cabin control options allow operators to work efficiently with minimal training.
4.Strong adaptability: From single-point lifting to complex multi-station conveying lines, the system can be freely combined.
5.Safe and reliable: High-strength cold-rolled steel profiles, overload protection, and limit switches ensure operational safety.

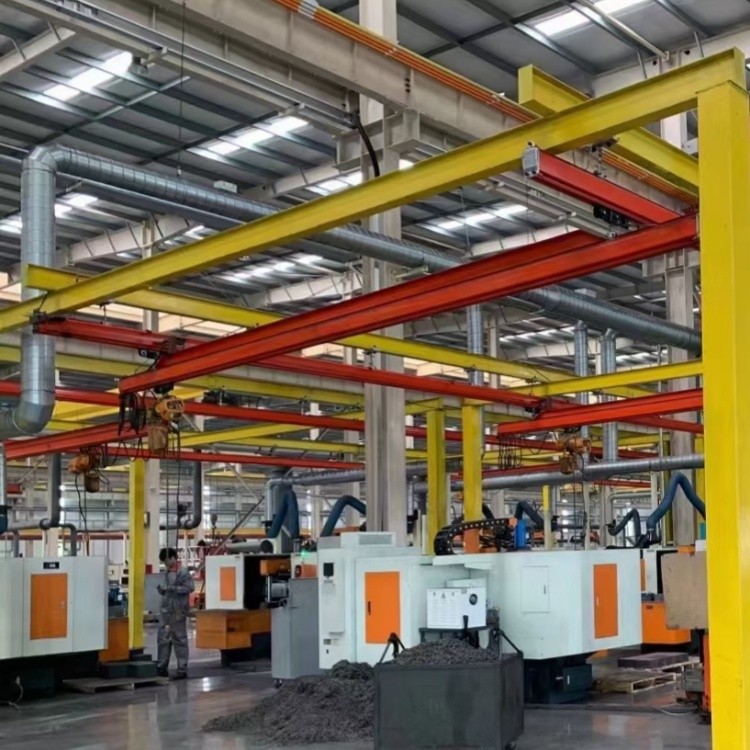

The Workstation overhead crane is widely used in manufacturing, assembly, warehousing, logistics, and maintenance areas for precise and efficient material handling. It is ideal for repetitive lifting, workstation-to-workstation transfer, and light-duty production lines, especially in space-limited workshops requiring flexible and modular lifting solutions.
Product Details：

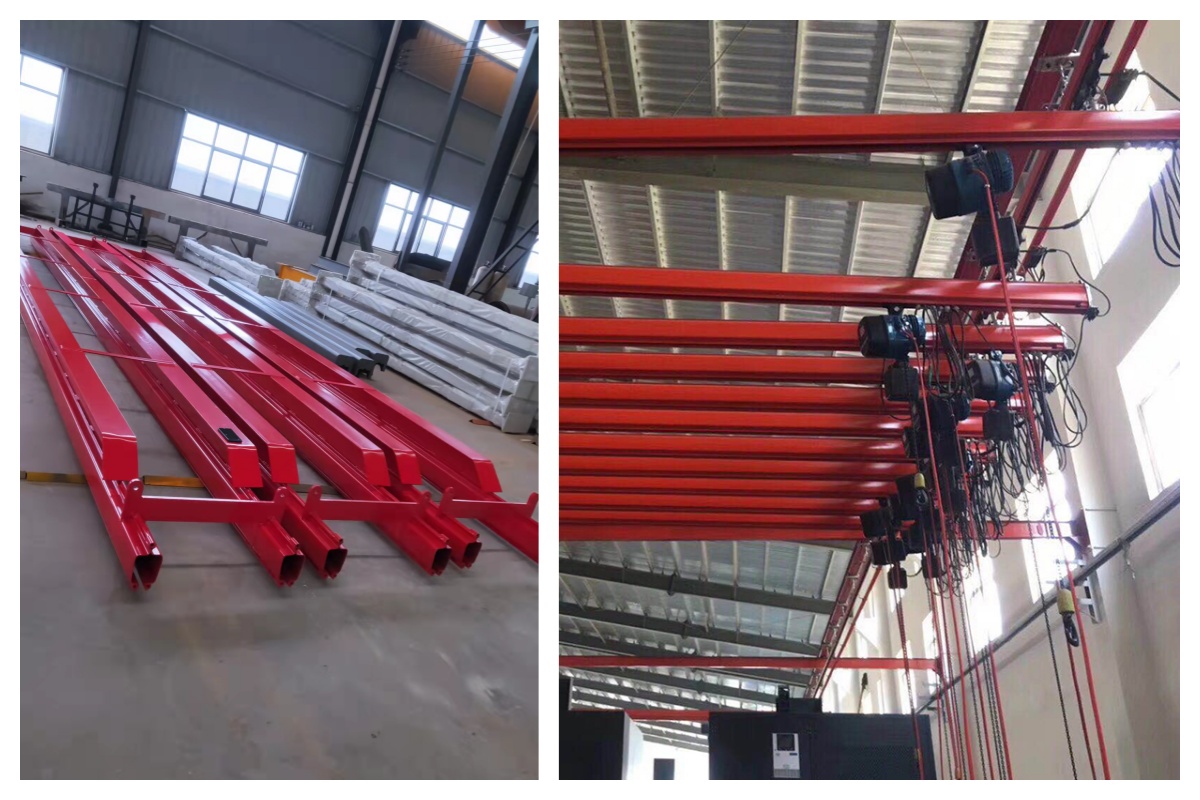

1.Rail System: High-strength Q235 steel rails provide smooth hoist travel. Shot-blasted and anti-corrosion treated for long service life.
2.Main Girder: Lightweight yet rigid steel girder supports the hoist and ensures stable crane operation with low deflection.
3.Electric Hoist: Specially designed for workstation cranes. Fully tested for dynamic and static loads, with durable baked paint finish.
4.Suspension Device: Mounts directly to I-beam or H-beam structures. Self-locking design allows fast, safe installation without extra supports.
FAQs：
Q: What is the difference between a workstation overhead crane and a traditional overhead crane?
A: A workstation overhead crane is designed for lighter loads, modular layouts, and localized handling, while traditional overhead cranes handle heavier loads and require fixed runway systems.
Q: Can a workstation overhead crane be expanded later?
A: Yes. One major advantage of the workstation overhead crane is its modular design, allowing easy expansion or reconfiguration as production needs change.
Q: What types of control are available?
A: The workstation overhead crane supports pendant control, remote control, and cabin control. Dual control modes can be installed but used alternately for safety.
Q: Is the workstation overhead crane suitable for low headroom workshops?
A: Yes. As a compact Workstation bridge crane, it is ideal for workshops with limited space and low clearance requirements.
