Description
Electric Wire Rope Hoist
Product Overview and Highlights：
Electric wire rope hoists are compact, efficient, and cost-effective lifting solutions designed for various industrial applications. They provide smooth, reliable lifting in limited space environments and come in multiple types to suit different needs, including CD hoist, MD hoist, hoist, and explosion-proof hoist. These hoists are used across a range of industries for material handling, ideal for single girder cranes, double girder cranes, and steel structures.
1.Versatile applications: Suitable for single girder cranes, gantry cranes, and steel structures.
2.Wide load capacity: Ranges from 0.5 to 20 tons.
3.Efficient lifting: High lifting speeds up to 8 m/min.
4.Multiple types: Includes CD hoist, MD hoist, low headroom hoist, and explosion-proof hoist.
5.Easy control: Pendant or wireless remote control options.
6.Compact design: Space-saving and ideal for tight installations.
Product Parameters：
|
Type |
Load Capacity (t) |
Lifting Height (m) |
Lifting Speed (m/min) |
Moving Speed (m/min) |
Working Class |
Control Method |
|
CD Hoist |
1-20 |
6-30 |
8 |
20 |
M3-M4 |
Pendant, wireless remote control |
|
MD Hoist |
1-20 |
6-30 |
8/0.8 |
20 |
M3-M4 |
Pendant, wireless remote control |
|
Low Headroom Hoist |
0.5-10 |
3-6 |
0-8 |
20 |
M3-M4 |
Pendant, wireless remote control |
|
Explosion-proof Hoist |
0.5-16 |
6-30 |
8/0.8 |
20 |
M4 |
Explosion-proof pendant or remote control |
Product Features and Applications：

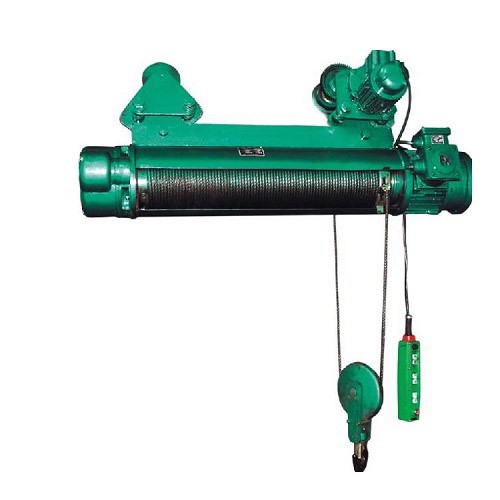

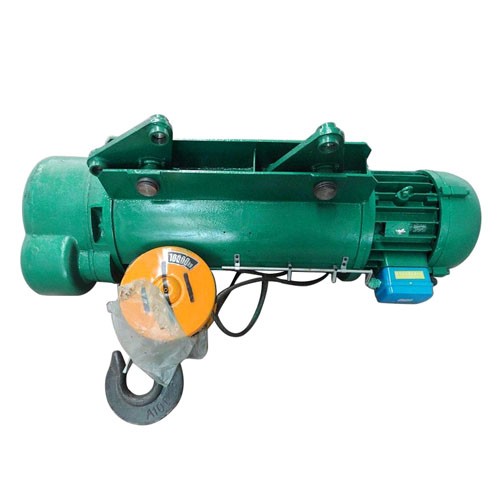

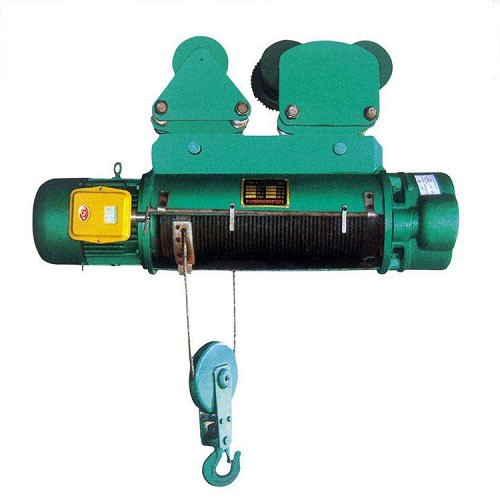

1.CD Hoist: Simple, reliable, and cost-effective for general lifting needs in warehouses, docks, and factories.
2.MD Hoist: Dual-speed for precise operations such as sand casting or machine tool maintenance, ideal for applications requiring slow lifting.

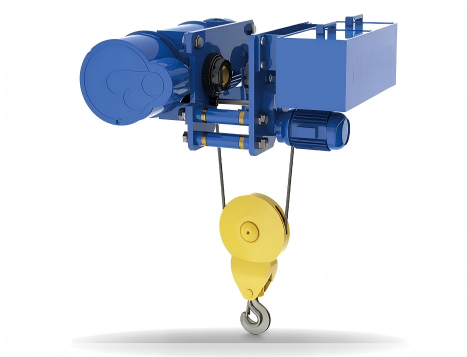

3.Low Headroom Hoist: Designed for environments with limited headroom, providing maximum lifting in confined spaces. Common in workshops and manufacturing environments.

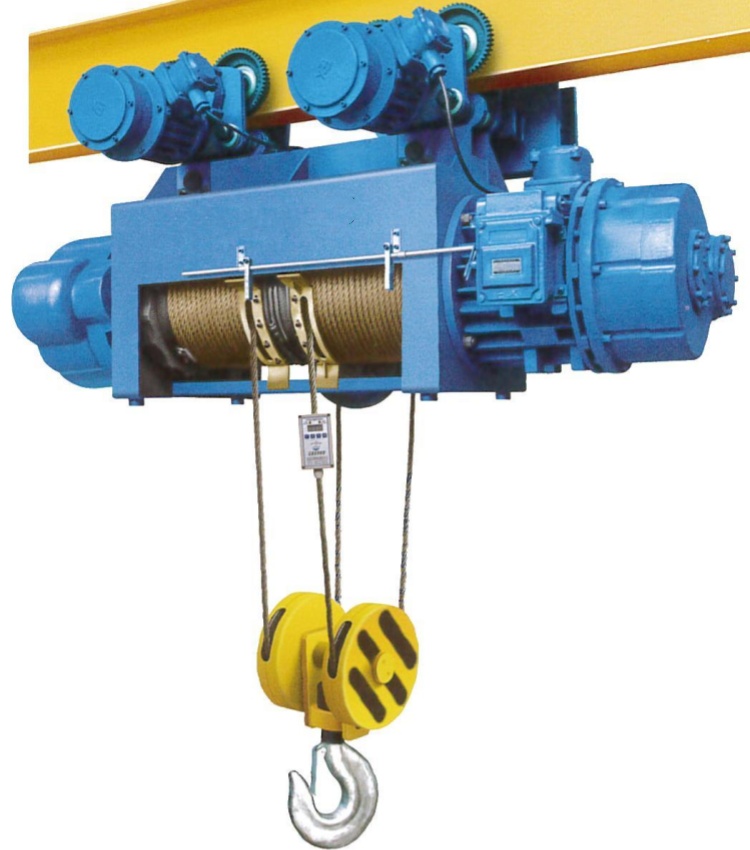

4.Explosion-proof Hoist: Specially designed for hazardous environments with explosive gases or vapors. Commonly used in chemical plants, oil refineries, and mining industries.
These electric wire rope hoists are highly versatile, providing efficient and reliable material handling solutions. They are commonly used in cranes, lifting platforms, and various industrial applications, ensuring high performance and durability.
Product Details：
1.Drum Shell: Welded by robots to ensure strength and load-bearing capacity, offering reliable operation.
2.Motor: High-performance motor with improved load duration, utilizing cold-rolled silicon steel for efficiency.
3.Brake System: Dual braking system with motor brake and mechanical brake ensures smooth and safe operation.
4.Control System: Equipped with a user-friendly pendant or wireless remote control for precise operation.
5.Environmentally Friendly Design: Uses eco-friendly paint and asbestos-free brake rings for a safer environment.
FAQs：
Q: What are the differences between CD and MD hoists?
A: The CD hoist is a single-speed model suitable for general lifting needs, while the MD hoist offers dual lifting speeds (normal and low) for precise handling, making it ideal for applications like sand casting and machine tool maintenance.
Q: What type of hoist is best for low-clearance spaces?
A: The low headroom hoist is designed for environments with limited vertical space, maximizing lifting height without compromising efficiency.
Q: Can the explosion-proof hoist be used in outdoor environments?
A: Yes, the explosion-proof hoist can be used outdoors but requires protective devices to shield it from weather conditions. It is ideal for environments with flammable gases and vapors.
Q: How do I control the electric hoist?
A: The electric wire rope hoists can be controlled using a pendant or wireless remote control, offering flexibility depending on your operational setup.
