Single Girder Gantry Crane
Product Overview and Highlights：

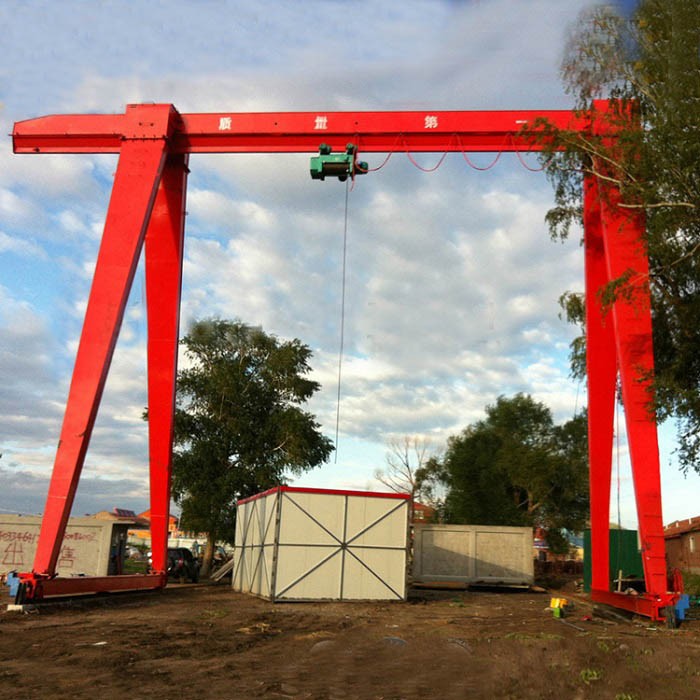

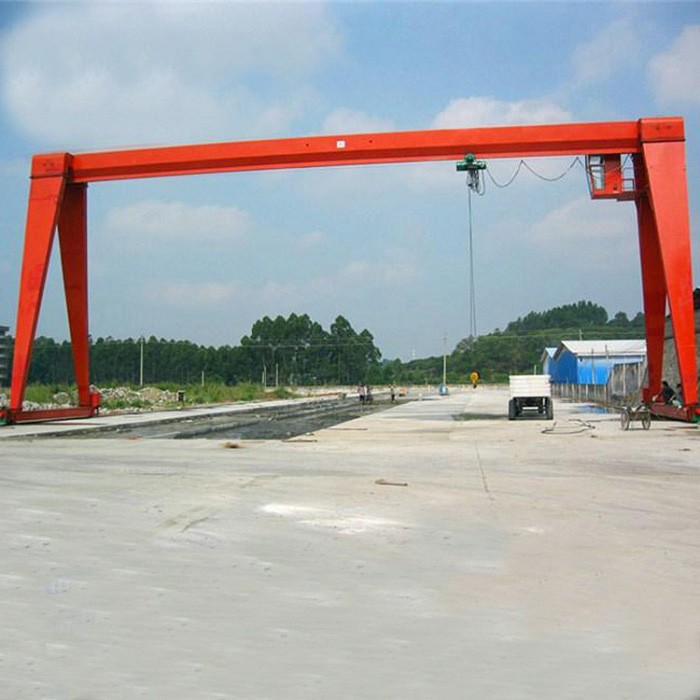

The single girder gantry crane is a light to medium-duty lifting solution designed for outdoor and indoor material handling. It works with CD and MD electric hoists and runs on ground rails, making it suitable for factories, warehouses, ports, construction sites, railway yards, and hydropower projects. With a simple structure and stable performance, the MH single girder gantry crane offers reliable lifting, easy operation, and cost-effective installation for a wide range of applications.
1.Compatible with CD / MD electric hoists
2.Load capacity from 3.2 to 32 tons
3.Rail-mounted design for outdoor and workshop use
4.Simple structure, low maintenance cost
5.Available pendant, remote, or cabin control
Product Parameters：
|
Type |
MH |
|
Load capacity (t) |
3.2;5;10;16;20;32 |
|
Span(m) |
12⁓30 |
|
Lifting height (m) |
6;9 |
|
Lifting speed (m/min) |
8/0.8;3.5/0.35 |
|
Cross moving speed (m/min) |
20 |
|
Long moving speed (m/min) |
20;30 |
|
Working Class |
A3-A5 |
|
Control method |
Pendant, wireless remote control,cabin |
|
Power supply |
AC,380V ,50HZ |
Product Features and Applications：
1.Strong adaptability: The single girder gantry crane can be customized to meet different site conditions, spans, and lifting needs.
2.Safe and reliable operation: Equipped with overload protection, limit switches, buffers, and emergency stop systems.
3.Easy maintenance: Fewer components make inspection and replacement simple, reducing downtime.
4.High working efficiency: Stable lifting and traveling improve productivity while saving labor and operating costs.

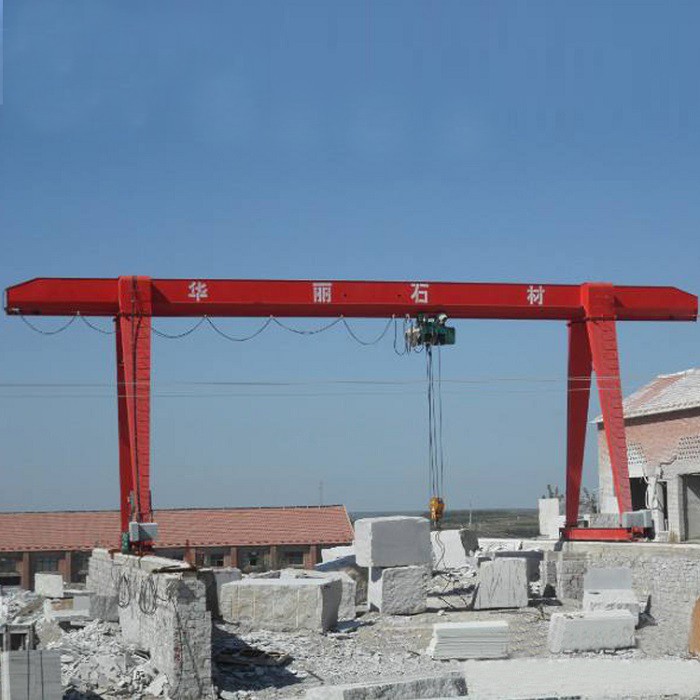

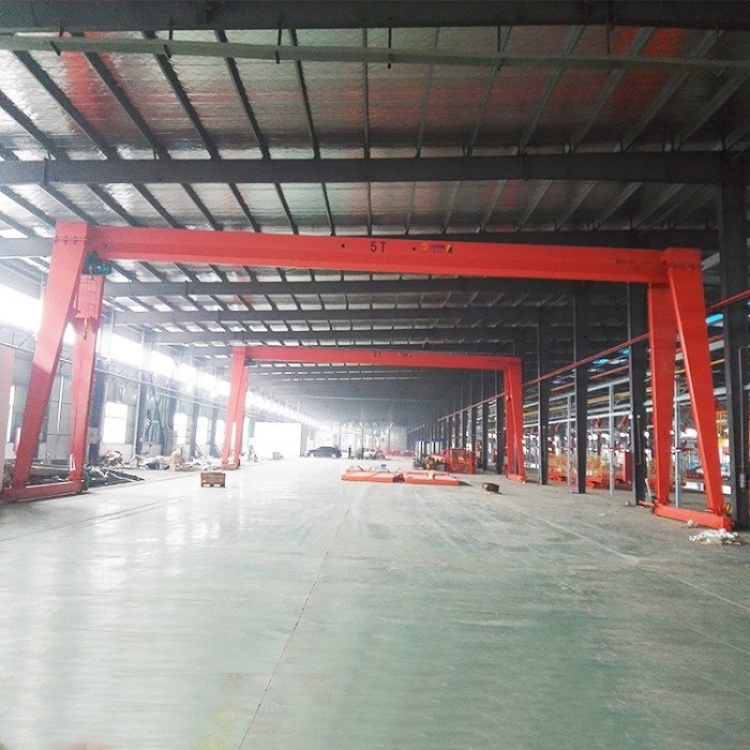

The single girder gantry crane is widely used in ports, cement pipe plants, container yards, granite processing, shipyards, open yards, and warehouses. It is suitable for loading, unloading, lifting, and material transportation in both open-air sites and indoor workshops.

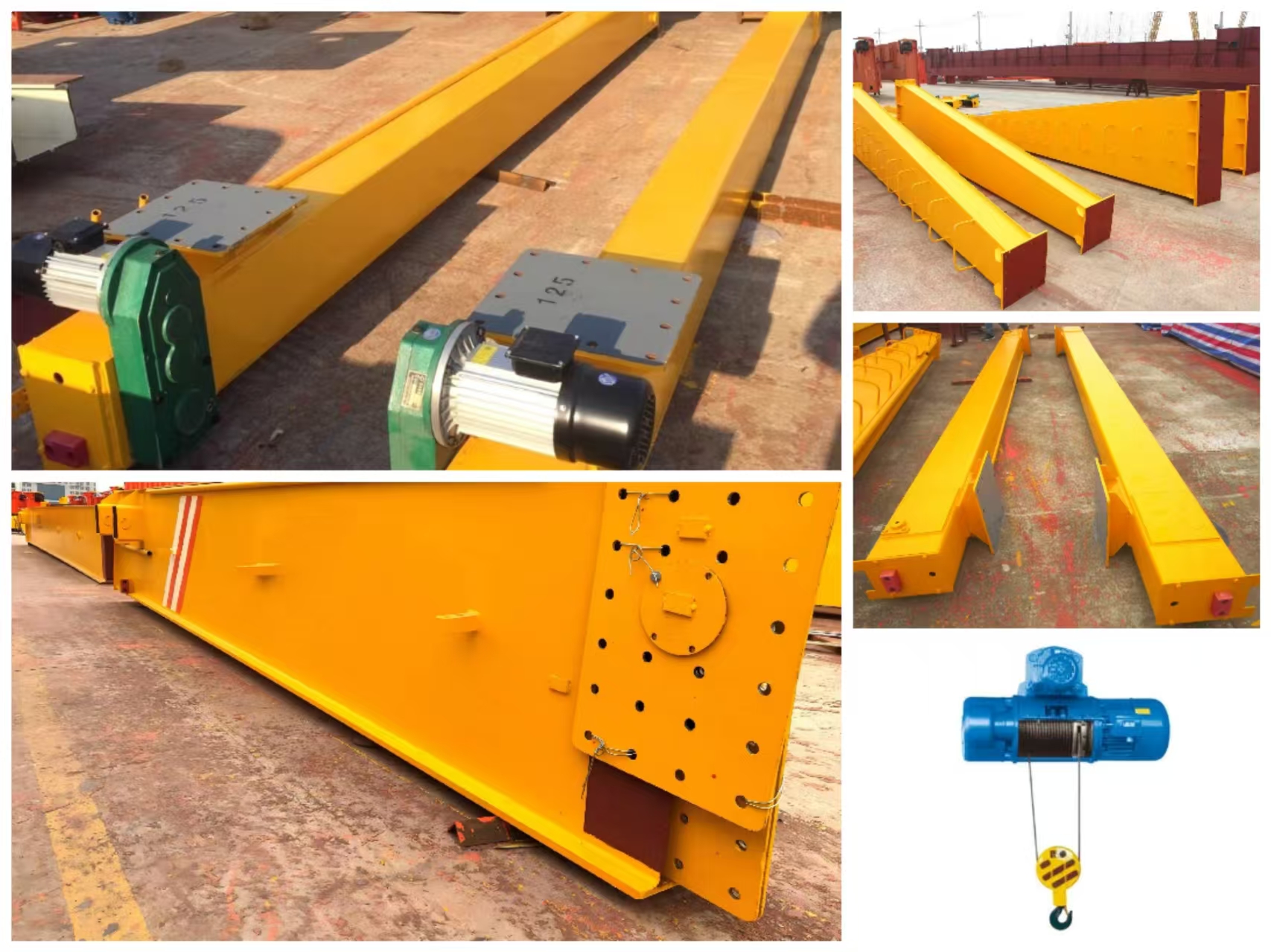

Product Details：
1.Main Beam: The main beam is the crane's primary load-bearing component, made from welded angle steel and I-beams, with saddles and buffers at both ends for smooth trolley movement.
2.Ground Beam: A box-shaped structure welded for rigidity, ensuring alignment with the flange surface and meeting standard quality requirements.
3.Support Leg: A simple A-shaped structure made from welded steel, enhancing strength and stability, with easy bolted connections for installation.
4.Electric Hoist: The electric hoist is tested for dynamic loads and pressure, with a durable baked paint finish for better adhesion.
5.Crane Traveling Mechanism: The traveling mechanism includes a soft-start motor with brakes and LDA-type wheels to prevent climbing and ensure stability.
FAQs：
Q: What is the difference between MH single girder gantry crane and overhead crane?
A: The single girder gantry crane runs on ground rails and is ideal for outdoor or semi-open areas, while overhead cranes require building support.
Q: Can the single girder gantry crane be customized?
A: Yes. Span, lifting height, control mode, and structure type can be customized based on your project.
