LX Suspension Overhead Crane
Product Overview and Highlights：

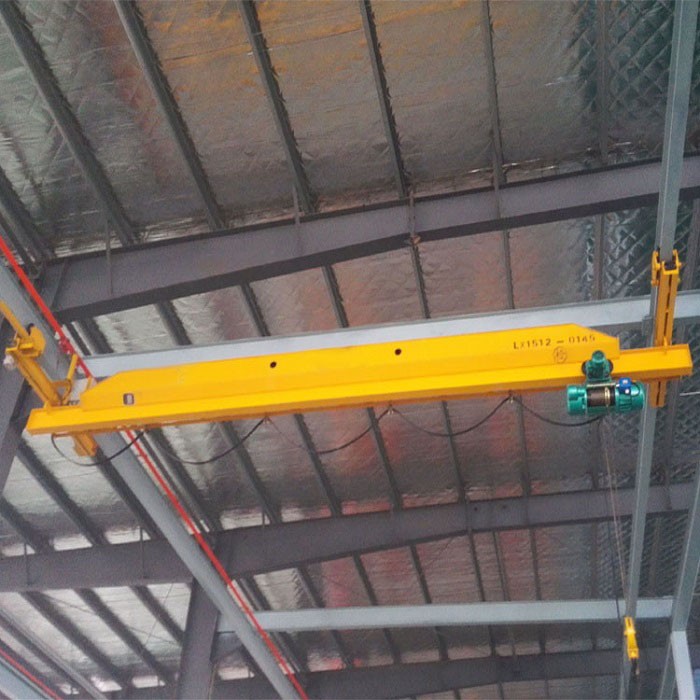

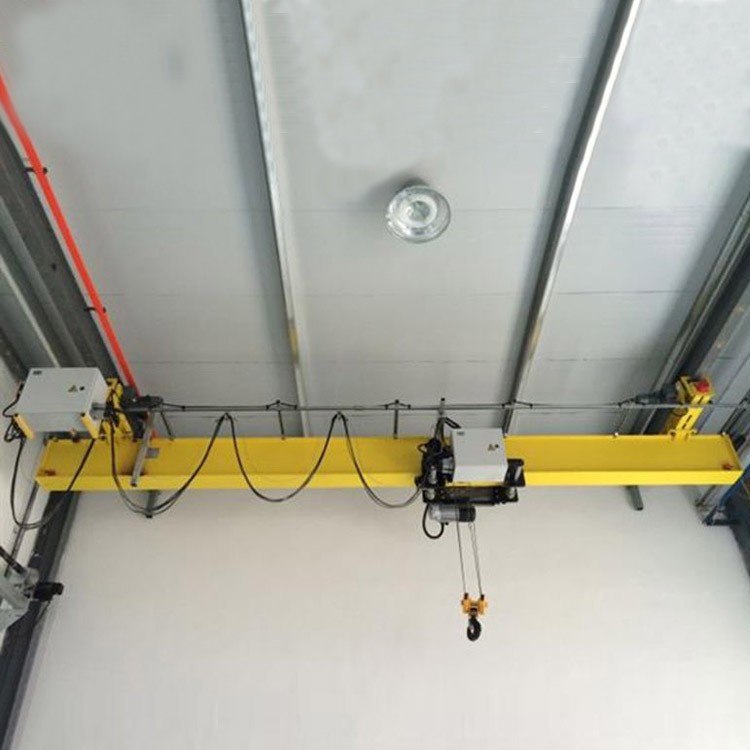

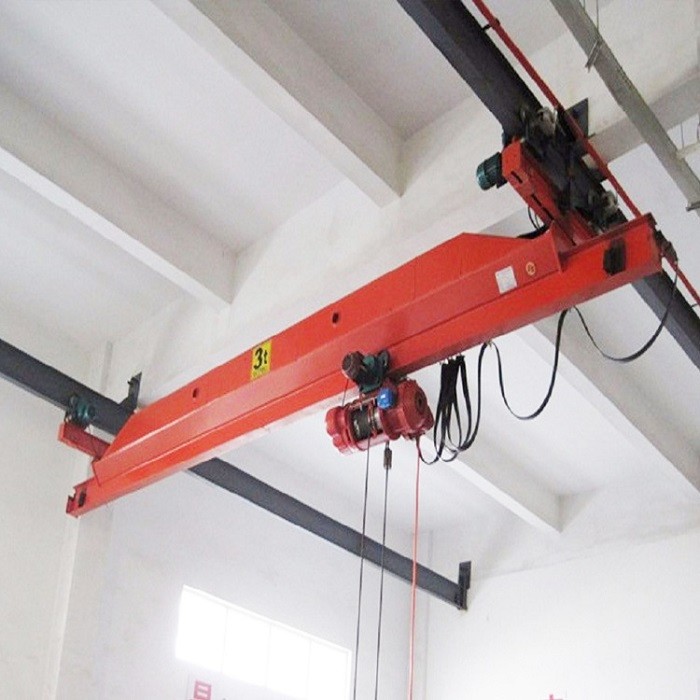

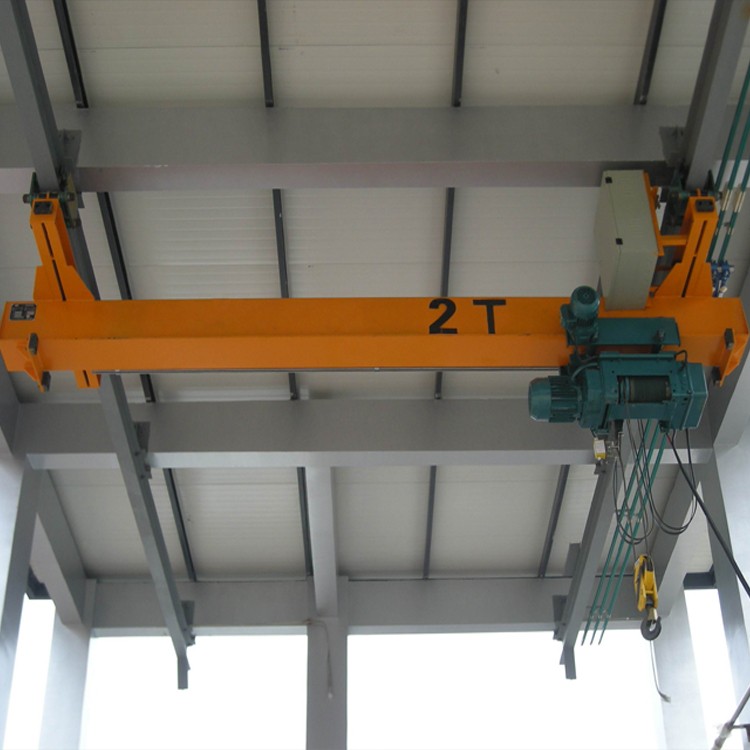

The LX suspension overhead crane is a light-duty material handling solution designed for workshops with limited space and low headroom. Suspended directly from the building roof or overhead I-beam track, it eliminates the need for runway columns and maximizes floor utilization. It operates with a wire rope electric hoist running along the lower flange of the main beam, providing stable, flexible, and efficient lifting for loads up to 10 tons. It is an ideal choice for machinery workshops, assembly lines, and warehouses requiring precise and frequent light lifting.
1.Lightweight single girder design with low deadweight.
2.Ceiling-mounted structure for maximum space utilization.
3.Smooth operation with CD1 or MD1 electric hoist.
4.Adjustable suspension devices for flexible installation.
5.Cost-effective solution for light-duty lifting tasks.
Product Parameters：
|
Type |
LX |
|
|
Load capacity (t) |
0.5;1;2;3;5;10 |
|
|
Span (m) |
3⁓22.5 |
|
|
Crane motion mechanism |
Moving speed (m/min) |
20;30 |
|
Electric hoist |
Lifting speed (m/min) |
8;8/0.8 |
|
Lifting height (m) |
6⁓30 |
|
|
Moving speed (m/min) |
20 |
|
|
Working Class |
A3, A4 |
|
|
Control method |
Pendant, wireless remote control |
|
|
Working temperature |
-25℃～40℃ |
|
|
Power supply |
3P,50HZ 380V or customize |
|
Product Features and Applications：
1.Compact and light structure: The LX Series Single Girder Suspension Overhead Crane reduces wheel pressure and building load.
2.Flexible installation: Suspended directly from roof beams or brackets, ideal for low-clearance workshops.
3.Stable performance: Even load distribution ensures smooth lifting and trolley travel.
4.Easy maintenance: Simple structure allows fast installation, inspection, and servicing.
The LX underslung overhead crane is widely used in machinery manufacturing, assembly workshops, warehouses, logistics centers, food processing plants, and laboratories. It is especially suitable for light material handling, component assembly, and precision positioning where space is limited and operational flexibility is required.

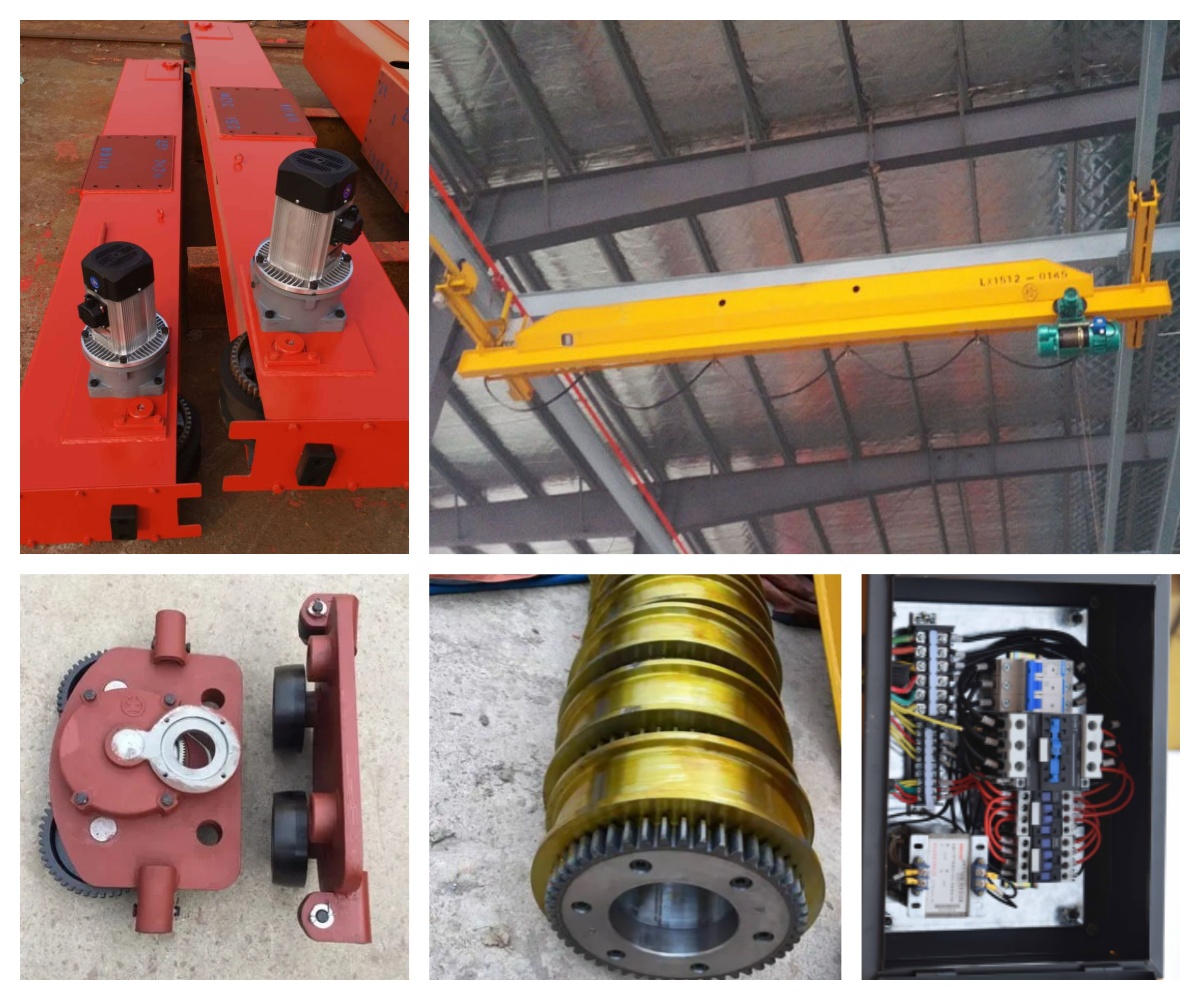

Product Details：
1.Main Beam: I-beam or box beam structure with integrated hoist running track.
2.Suspension System: Adjustable suspension devices connect the crane to roof structures or brackets.
3.Electric Hoist: CD1 (single speed) or MD1 (dual speed) wire rope hoist with high safety factor.
4.Travel System: Smooth crane and trolley travel with stable speed control.
FAQs：
Q: What is the maximum capacity of an LX suspension overhead crane?
A: The standard lifting capacity ranges from 0.5 to 10 tons.
Q: Does the building structure need special reinforcement?
A: Yes. The roof or beam must be able to support both the crane weight and the rated load.
Q: What makes an underslung crane different from a top-running crane?
A: An underslung crane is suspended from the roof structure and is suitable for lighter loads and low headroom spaces.
Q: Can the LX suspension overhead crane be customized?
A: Yes. Span, lifting height, control mode, and hoist type can be tailored to site requirements.
